Installing PVC bathroom wall panels is one of the fastest ways to create a clean, low-maintenance, and water-resistant wall finish in bathrooms, shower rooms, hotel guest bathrooms, villas, and commercial washrooms. However, a panel is only as waterproof as its substrate preparation, joint sealing, trim system, and installation method.
At Binmao Decor, we manufacture quick-install PVC wall panels, UV boards, waterproof composite panels, WPC panels, PU panels, acoustic-backed panels, and decorative wall-cladding systems for hospitality, residential, and commercial projects. From our manufacturing and project-support experience, the most common cause of a failed bathroom wall-panel installation is not the panel itself—it is poor wall preparation, incorrect adhesive selection, or incomplete silicone sealing around joints and fixtures.

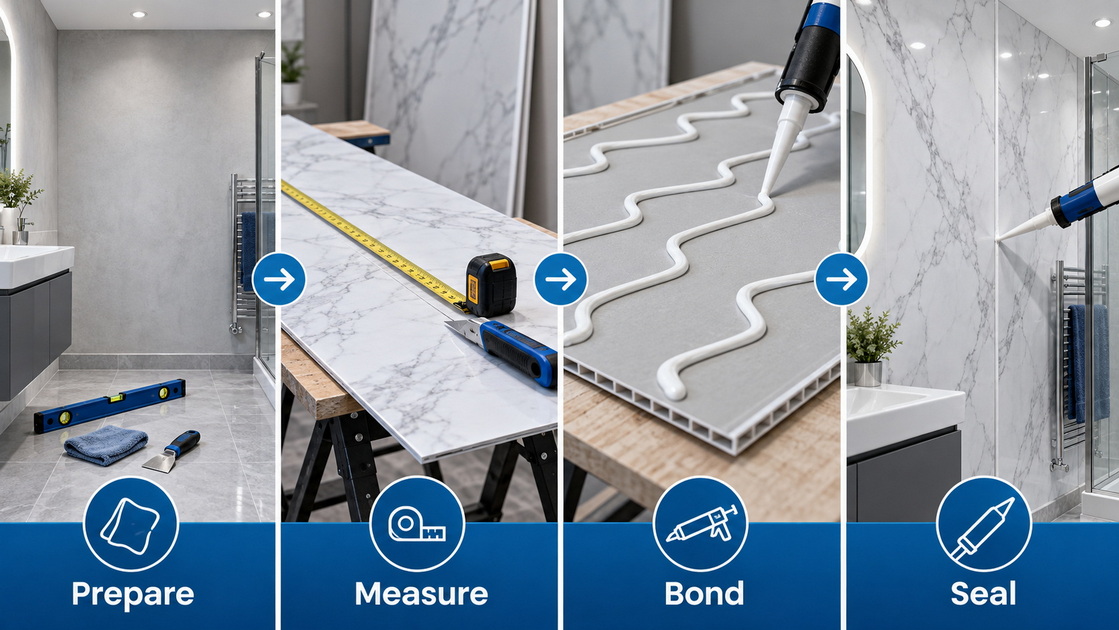

This guide explains how to install PVC bathroom wall panels professionally, how to seal them for wet areas, and how to avoid the installation mistakes that can lead to water ingress, mould, panel movement, or adhesive failure.
PVC wall panels are widely used as an alternative to ceramic tile, painted plaster, and moisture-sensitive decorative boards. They can provide a continuous decorative surface with fewer joints than tile, which may reduce cleaning time and simplify renovation work.
For bathrooms, the main advantages of a properly specified PVC wall panel system include:
- Water-resistant surface performance for bathrooms, shower rooms, and wash areas
- Fast installation compared with traditional tile systems
- Low-maintenance finishes that are easy to wipe clean
- Decorative flexibility, including marble, stone, wood grain, concrete, metallic, fabric, and solid-colour effects
- Lightweight handling, especially useful in renovation projects
- Customisable sizes, thicknesses, finishes, trims, and panel structures
- Potentially fewer grout lines, which can simplify routine cleaning
For hotel projects, villas, rental properties, serviced apartments, retail interiors, and commercial washrooms, fast-install wall panels can help reduce downtime during refurbishment. Binmao Decor supports project-specific wall panel configurations, including PVC/WPC structures, UV decorative boards, PU decorative panels, E0/E1 MDF-based products, oak or walnut veneer finishes, and acoustic-backed wall-panel systems where appropriate.
However, it is important to make one distinction: a waterproof panel surface does not automatically create a waterproof installation. In shower areas, every perimeter edge, trim channel, panel joint, pipe penetration, and fixture opening must be sealed according to the panel manufacturer's installation instructions.
A successful PVC bathroom wall panel installation begins before adhesive is applied. The wall must be stable, dry, clean, and sufficiently flat for the selected installation method.
Inspect the wall for the following issues:
- Loose tiles, peeling paint, unstable plaster, or damaged drywall
- Signs of dampness, water leaks, mould, or salt deposits
- Major high spots, hollows, or uneven surfaces
- Cracks around windows, shower trays, bath edges, and plumbing penetrations
- Existing silicone residue, grease, soap film, wax, or dust
- Electrical outlets, pipes, valves, shower mixers, and wall-mounted accessories
If there is an active leak, damaged waterproofing membrane, or structurally unstable wall, do not cover the issue with panels. Repair the cause first. Wall panels are a finish system, not a substitute for fixing plumbing leaks or failed building waterproofing.
In some cases, PVC wall panels can be installed over existing tiles if the tiled wall is sound, flat, clean, and firmly bonded. But this should not be treated as an automatic shortcut.
Before installing over tiles:
1. Check that no tiles are loose or hollow.
2. Remove soap residue, grease, limescale, and silicone contamination.
3. Lightly abrade glossy surfaces if the adhesive manufacturer requires it.
4. Fill deep grout lines or uneven areas if they could telegraph through the panel.
5. Confirm that the adhesive is suitable for non-porous surfaces.
6. Ensure there is no trapped moisture behind the tile system.
A flat, stable tiled surface can be suitable for direct bonding, but damaged or uneven tile should be removed or corrected. The original source article correctly highlights that uneven tile surfaces and poor adhesive contact can compromise panel bonding.
Prepare every tool and material before cutting the first panel. This reduces handling errors and prevents adhesive from curing while you search for missing equipment.
| Category | Recommended Items |
|---|---|
| Measuring | Tape measure, pencil, straight edge, spirit level, square |
| Cutting | Fine-tooth handsaw, jigsaw, circular saw with suitable blade, utility knife, hole saw |
| Fixing | Solvent-free panel adhesive, caulking gun, masking tape, spacers |
| Sealing | Neutral-cure silicone sealant suitable for wet areas |
| Finishing | Internal corner trims, external corner trims, end caps, base trims, edge profiles |
| Safety | Safety glasses, dust mask, gloves, hearing protection when using powered tools |
Use an adhesive that is compatible with:
- The back of your PVC wall panel
- The wall substrate
- The ambient temperature and humidity
- Wet-area installation requirements
- The intended panel weight and size
For bathroom and shower-wall applications, installers should generally use neutral-cure silicone for joints, trim channels, corners, and penetrations where the product manufacturer specifies it. Several PVC panel installation guides state that silicone sealing is mandatory in wet installations and recommend neutral-cure silicone around corners and fixtures.
Avoid adhesives or sealants containing solvents that may attack, stain, soften, or distort PVC materials. Always check the adhesive and sealant manufacturer's technical data sheet before beginning work.
PVC is a polymer-based material, so it can expand and contract as temperature and humidity conditions change. That movement must be considered during installation.
Place the panels in the installation area for at least 24 hours before fitting. Loosen or remove restrictive packaging so the panels can adjust to the room environment. Industry installation guidance commonly recommends acclimatisation before fitting to reduce the risk of movement after installation.
If cold panels are installed in a warm bathroom without allowing for movement, they may expand later. If panels are installed in a hot environment and then cool down, gaps may appear.
For this reason:
- Store panels flat in the room where they will be installed.
- Avoid fitting panels in extremely cold or excessively hot conditions.
- Allow perimeter clearances where required by the panel system.
- Do not force a panel tightly into every trim channel.
- Follow the specific expansion-gap guidance supplied by the panel manufacturer.
Do not start with adhesive. First, create a basic installation plan.
Measure:
- Wall width and height
- Shower tray or bath edge position
- Ceiling height
- Window openings
- Pipe positions
- Shower valves and mixers
- Electrical fittings
- Internal and external corners
- Trim positions
Mark the panel sequence before cutting. Where panels have a directional pattern—such as marble veins, wood grain, fluted texture, or stone effect—dry lay the panels first to confirm that the visual flow looks intentional.
- Start from the most visible corner where possible.
- Keep narrow offcuts away from highly visible focal points.
- Position factory-finished edges where they will remain visible.
- Use trims to finish exposed edges cleanly.
- Check vertical alignment with a spirit level rather than relying on a wall corner.
- Dry-fit every complex panel before applying adhesive.
For hospitality and commercial projects, layout planning should also consider repeatability. Standardising panel direction, trim details, and cut locations can help maintain a consistent visual result across multiple rooms.
Corner trims and base profiles are not only decorative. In wet areas, they form part of the water-management system.
1. Cut the internal corner trim to the required height.
2. Test-fit it before adhesive application.
3. Apply suitable adhesive to the trim's wall-contact surfaces.
4. Position it accurately using a spirit level.
5. Use masking tape temporarily if required.
6. Apply silicone inside the trim channel where the panel manufacturer specifies wet-area sealing.
The original competitor guide recommends applying silicone in the corner trim before inserting the panel to help create a water-resistant junction.
Where panels meet a shower tray, bath, or floor, use a suitable base profile or leave the system-specific gap recommended by the manufacturer. The bottom edge is a critical location because standing water can collect there.
Best practice includes:
- Applying sealant behind the base trim
- Sealing the panel-to-trim connection
- Sealing the trim-to-shower-tray or trim-to-bath connection
- Checking that water cannot travel behind the panel system
Wet-wall installation guidance emphasises sealing at vertical joints, profile channels, and the bottom panel edge, particularly around shower trays and baths.
Measure every panel individually. Bathroom walls are rarely perfectly square, especially in older homes, hotels, and renovation projects.
- Use a fine-tooth saw for clean straight cuts.
- Keep protective film on the decorative face during cutting if supplied.
- Cut with the decorative face up when using a handsaw.
- Cut with the decorative face down when using many jigsaws, depending on blade direction.
- Use a hole saw for pipe penetrations and shower fittings.
- Use a cardboard template for irregular corners, window reveals, and complex pipe layouts.
Make cuts slightly conservatively, then test-fit. It is easier to remove more material than to repair an oversized cut.
Do not create a rigid, zero-clearance installation. Leave the expansion allowance required for your panel system, especially at perimeter edges and around penetrations. Some PVC installation guides specify clearances at panel ends and larger allowances at the top of vertical installations to accommodate movement.
For pipe openings, leave a small clearance around the pipe and seal the outer edge with silicone after panel installation. This prevents stress around the penetration while maintaining a water-resistant finish.
The first panel controls the alignment of the entire installation. Take extra time here.
1. Confirm the panel is correctly cut and dry-fitted.
2. Apply the recommended adhesive to the panel back or wall surface, according to the adhesive manufacturer's instructions.
3. Position the first panel into the corner or starting trim.
4. Press the panel firmly onto the wall.
5. Use a smoothing or squeezing motion to remove trapped air.
6. Check vertical alignment with a spirit level.
7. Use masking tape or temporary bracing if required while the adhesive cures.
Some shower-panel installation guidance recommends applying adhesive in regular beads across the rear of the panel, then pressing the panel firmly into position.
Avoid applying adhesive only around the edges unless the system specifically permits it. Poor adhesive coverage can create hollow areas, reduce bonding performance, and allow the panel to flex during use.

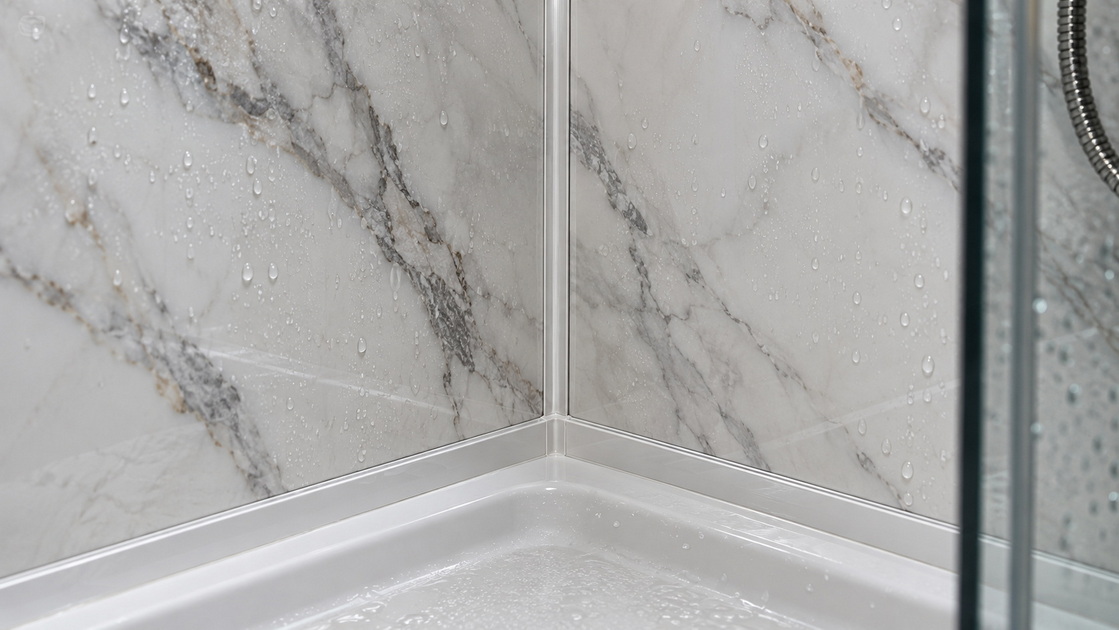

This is the most important step in shower zones and wet rooms.
Before joining the next panel, apply a continuous bead of compatible silicone sealant inside the appropriate tongue-and-groove joint or trim channel. Then insert the panel fully and remove excess sealant immediately with an appropriate cleaning method.
- Internal corners
- External corners
- Tongue-and-groove panel joints
- End-cap trims
- Bottom edges at shower trays and baths
- Wall-to-floor transitions
- Pipe penetrations
- Shower valves and mixer openings
- Window reveals
- Panel-to-ceiling interfaces where exposed to moisture
For wet installations, panel manufacturers commonly instruct installers to apply silicone inside grooves before connecting panels and to seal corners and fixture openings.
A PVC panel system may look finished before it is actually waterproof. Decorative trims can conceal gaps, but they do not guarantee water resistance unless their channels are properly sealed.
Visual inspection is essential. Check every joint before silicone cures:
- Is the silicone bead continuous?
- Are there visible voids or skipped sections?
- Is the panel fully seated in the trim?
- Has excess sealant been cleaned away?
- Are all pipe penetrations sealed?
- Is the bottom edge protected from water ingress?
The following errors often shorten the service life of an otherwise high-quality wall panel system.
| Installation Mistake | Possible Result | Better Practice |
|---|---|---|
| Installing over damp walls | Mould, adhesive failure, trapped moisture | Identify and repair moisture sources first |
| Skipping panel acclimatisation | Expansion, buckling, visible gaps | Store panels in the room for at least 24 hours |
| Using incompatible adhesive | Staining, weak bonding, panel distortion | Use manufacturer-approved, solvent-free adhesive |
| Not sealing panel joints | Water ingress behind panels | Apply silicone in joints and trim channels |
| Cutting panels too tightly | Stress, buckling, cracked trims | Allow specified expansion clearance |
| Ignoring uneven walls | Gaps, flexing, poor visual finish | Level, fill, batten, or correct the substrate |
| Using low-quality trims | Weak edge protection and poor appearance | Use matched, purpose-designed trim systems |
| Using shower too early | Sealant or adhesive failure | Wait for full curing based on product instructions |
A professional installation is less about working quickly and more about controlling the details that water will eventually find.

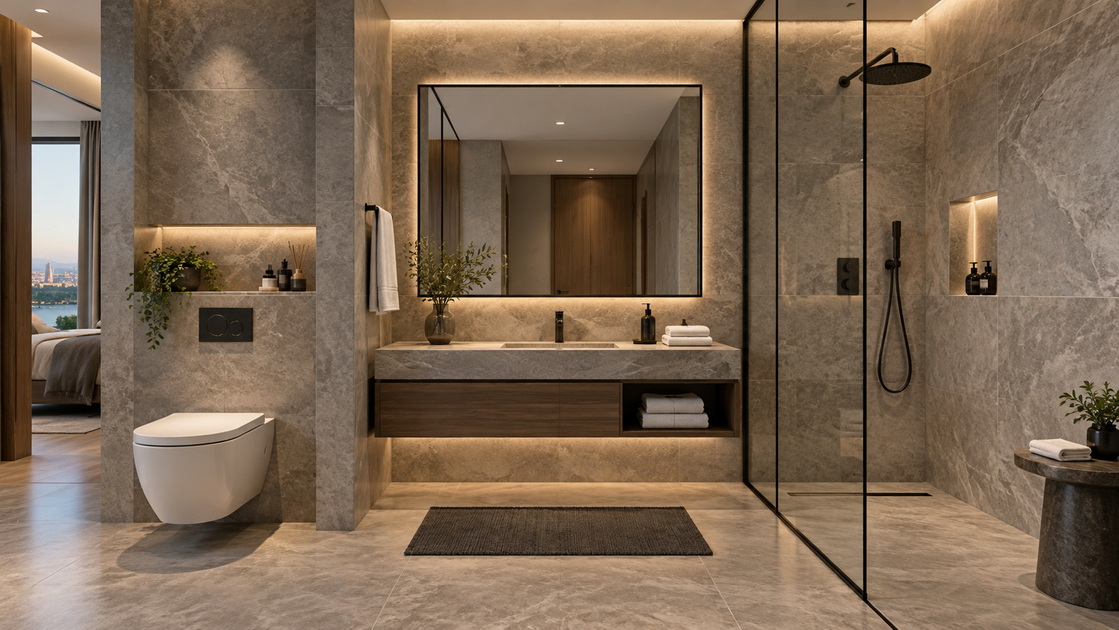

Not all wall panels are designed for the same project conditions. A family bathroom, hotel wet room, spa changing area, rental apartment, and commercial washroom may require different specifications.
When sourcing PVC bathroom wall panels for a project, ask the manufacturer for:
- Product composition and panel structure
- Thickness and available dimensions
- Surface finish and colour consistency
- Waterproof performance information
- Fire-performance documentation where required
- Formaldehyde/emission information for MDF-based or composite products
- Installation manual and compatible accessory system
- Recommended adhesive and sealant specifications
- Sample panels and trim samples
- Test reports relevant to your target market and project requirements
Binmao Decor provides integrated wall-panel solutions for modern hotels, villas, commercial spaces, and residential interiors. The product range includes PVC wall panels, UV marble wall panels, WPC panels, acoustic wall panels, bamboo wood-fibre wall panels, PU stone panels, and other decorative materials. The company also supports custom project requirements for size, surface finish, and panel configuration.
For projects requiring premium decorative performance, options may include oak veneer, walnut veneer, stone-effect UV boards, fabric-look finishes, acoustic backing, fluted panel profiles, and custom colour matching. For bathrooms and wet zones, however, the final product selection should always be based on the exact exposure conditions, required fire classification, local code requirements, cleaning practices, and installation environment.
Before handing over the bathroom, complete a final quality-control inspection.
- Panels are straight, aligned, and securely bonded
- All trims are fully seated and cleanly finished
- Every wet-area joint has continuous silicone sealing
- Pipe and fixture penetrations are sealed
- No exposed wall substrate is visible
- No sharp edges, loose trims, or visible adhesive residue remain
- Protective films have been removed after installation
- Adhesive and sealant cure times have been observed
- The shower is not used until curing is complete
Many silicone and adhesive systems require approximately 24 hours or longer before exposure to water, but the exact curing time depends on product formulation, temperature, ventilation, humidity, and bead thickness. Always follow the product manufacturer's stated cure time rather than relying on a general rule.
A beautiful bathroom wall panel installation depends on three things: the right panel system, correct accessories, and disciplined installation. For small residential projects, a carefully prepared DIY installation can achieve a strong result. For hotels, villas, multi-room apartments, retail chains, and commercial wet areas, professional specification and installation support can reduce rework risk and help maintain consistent quality across the project.
Binmao Decor supplies fast-install decorative wall-panel systems for global buyers, distributors, contractors, and project procurement teams. We can support customised widths, thicknesses, decorative finishes, panel structures, matching trims, and relevant product documentation for your residential, hospitality, and commercial wall-cladding requirements.
Contact Binmao Decor today to request samples, product specifications, installation guidance, and a customised wall-panel solution for your next bathroom, hotel, villa, or commercial interior project.
Yes, PVC wall panels can be suitable for shower walls when the product is designed for wet-area use and installed with compatible trims, adhesive, and silicone sealing. The installation must be fully sealed at panel joints, corners, shower trays, and plumbing penetrations to reduce the risk of water entering behind the panels.
Not always. PVC wall panels may be installed over existing tiles if the tile surface is stable, flat, clean, dry, and compatible with the selected adhesive. Remove loose tiles, repair uneven areas, and confirm that no moisture is trapped behind the existing tile installation before proceeding.
Use a solvent-free adhesive that is approved for PVC panels, your specific wall substrate, and wet-area applications. Do not assume that all construction adhesives are compatible with PVC. Check the panel manufacturer's installation guide and the adhesive manufacturer's technical data sheet before use.
Panels should generally be acclimatised in the installation room for at least 24 hours before fitting. This helps reduce the risk of expansion or contraction after installation, particularly where room temperature or humidity differs from storage conditions.
Yes, silicone sealing is essential in shower areas, wet rooms, and other moisture-exposed locations. Apply compatible neutral-cure silicone inside the relevant panel joints, trims, corners, bottom edges, and penetrations as specified by the panel system.
Yes. Use a hole saw, jigsaw, or carefully measured cut-out to create openings for pipes, valves, and fittings. Leave a small clearance around the penetration to allow for movement, then seal around the opening with appropriate silicone.
Wait until the adhesive and silicone sealant have fully cured. Depending on the product and site conditions, this may be around 24 hours or longer. Always follow the curing instructions printed on the sealant and adhesive packaging.
1. [Binmao Decor – Wholesale UV Boards and Waterproof, Fire-Retardant Composite Wall Panels] – Product range, hospitality and commercial applications, custom service, manufacturing capabilities, and project positioning. [binmaomaterials]
2. [Wall Panels World – How to Fit PVC Wall Panels in a Bathroom] – Original installation workflow, tools, cutting direction, corner trim installation, sealing approach, and bathroom panel FAQs. [wallpanelsworld.co]
3. [Duramax PVC Wall Panels & Trim Installation Guide] – Panel acclimatisation guidance and temperature considerations. [duramaxpvcpanels]
4. [Duramax PVC Wall Panel Installation Guide] – Wet-installation silicone requirements, neutral-cure silicone recommendation, and expansion clearance guidance. [duramaxpvcpanels]
5. [Perform Panel – Bathroom and Shower Wet Wall Panel Installation Guide] – Sealing requirements for joints, profiles, shower trays, and bath interfaces. [performboard.co]
6. [Family Handyman – How to Install Shower Wall Panels] – Practical adhesive application and shower-wall panel fitting principles. [familyhandyman]
7. [DelPro – PVC Wall Panel Installation Guide] – Acclimatisation, sealant application, trim sealing, and low-temperature expansion guidance. [delpro1638]
8. [Conric – How to Install Shower Wall Panels] – Shower-panel sealing process and cure-time guidance. [conric]
