A board and batten calculator helps you turn a blank wall into an evenly spaced feature. However, a successful layout needs more than a gap measurement. You also need clear edge conditions, a practical cutting plan, and interior wall panels suited to the room.
At Binmao Decor, our planning approach starts with the wall and ends with the complete installation specification. This guide explains the spacing calculations, demonstrates a material takeoff, and highlights the questions homeowners, hotel designers, and commercial buyers should resolve before ordering.
Traditional board and batten uses wide boards with narrow vertical battens covering their joints. Interior interpretations often use decorative battens over a smooth wall or backing sheet, with horizontal rails framing the arrangement.
A useful board and batten spacing calculator should establish:
- The number of vertical battens.
- The clear opening between adjacent battens.
- Batten centre positions for setting out.
- Rail lengths and vertical cut lengths.
- Stock requirements based on a realistic cutting schedule.
These outputs are related, but they are not interchangeable. Clear spacing is the visible opening; centre spacing includes one batten width. Confusing them shifts every subsequent installation mark.
Measure at the top, middle, and bottom of the proposed installation. Record differences rather than assuming the wall is square.
Identify the finished layout boundaries. These might be inside corners, door architraves, or the outer edges of a framed feature wall. Measure between those boundaries, not automatically between the room's structural corners.
Use one unit throughout. Millimetres simplify cutting schedules; inches work equally well when every input uses inches.
Record the finished panelling height, skirting height, rail widths, and whether vertical pieces fit between rails or continue behind them.
Map sockets, switches, thermostats, access covers, and fixed furniture. Keep electrical equipment accessible and have any electrical alterations assessed by a qualified professional.
For a hotel headboard wall, include bedside lights and furniture positions. A mathematically balanced wall can still look awkward when a batten interrupts the main visual feature.

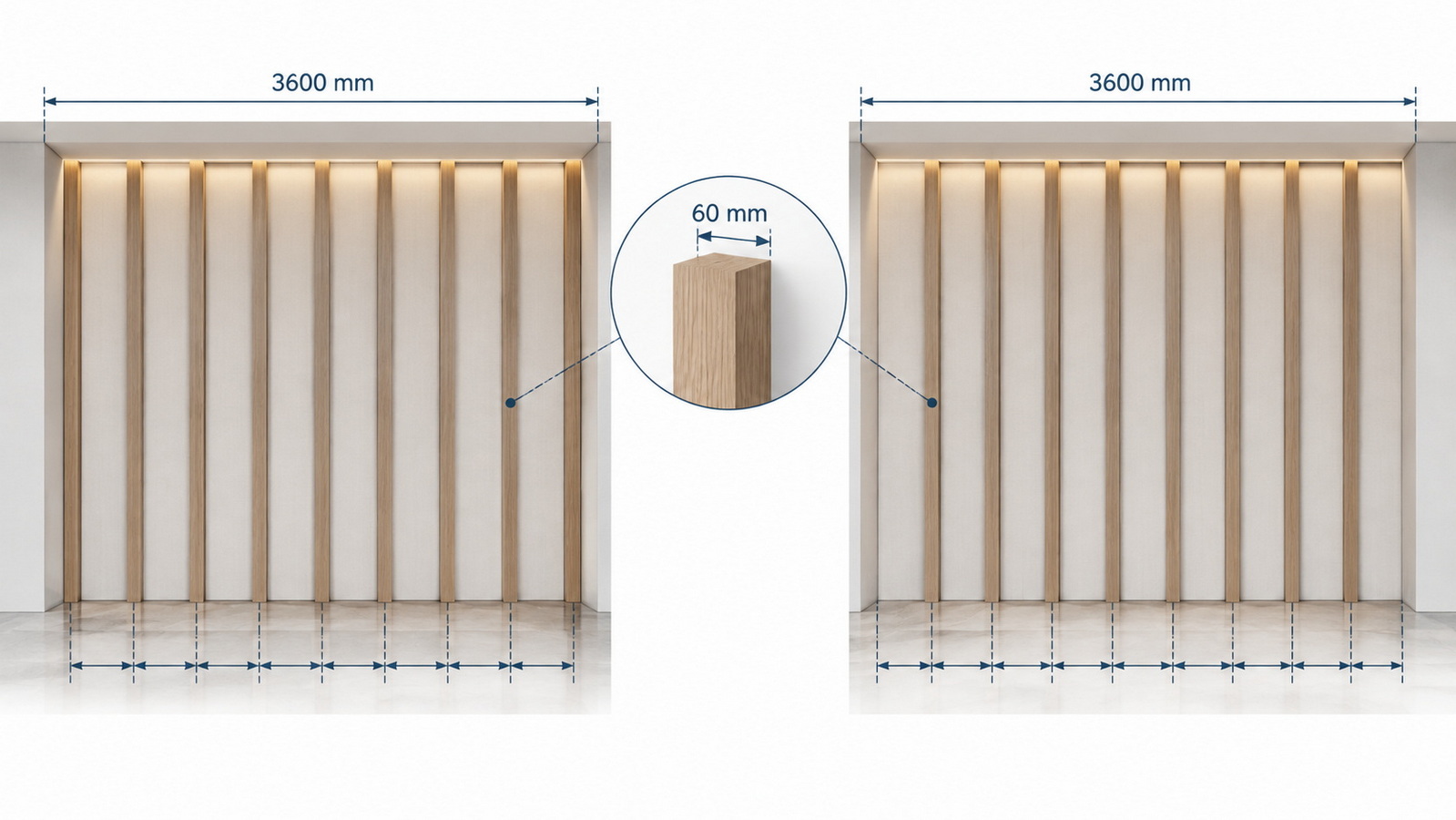

Use this formula when the wall starts and finishes with a full-width batten:
Clear gap=（W-NB）/（N-1）
Where:
W= usable wall width.
N = total battens, including both end battens.
B = actual batten face width.
This requires at least two battens and enough wall width to accommodate them. Measure the actual profile rather than relying only on a nominal product name.
For a 3,600 mm wall with eight 60 mm battens:
Clear gap=（3,600−8×60）/7=445.7 mm
The centre-to-centre distance is 505.7 mm. The layout contains eight battens and seven openings—not eight openings.
When no battens sit against the boundaries, and both edge openings match the internal openings, use:
Clear gap=（W−NB）/（N+1）
With the same wall and eight battens:
Clear gap=(3,600-480)/9=346.7 mm
Neither arrangement is automatically better. Choose the boundary treatment first; otherwise, a correct calculation can produce the wrong design.
For full battens at both edges, estimate:
Number of gaps≈（W−B）/(Target gap+B)
Compare the nearest practical whole-number gap counts, then recalculate the exact spacing. Add one to the chosen gap count to obtain the batten count.
Do not blindly round down. That can create wider openings than intended. Check nearby alternatives against furniture, outlets, and the visual rhythm of the room.
Consider an illustrative feature wall, not a completed customer project:
| Planning item | Selected dimension |
|---|---|
| Usable wall width | 3,600 mm |
| Finished height above existing skirting | 1,200 mm |
| Vertical battens | 8 |
| Batten face width | 60 mm |
| Top and bottom rail face width | 60 mm each |
| Clear opening | 445.7 mm |
| Vertical cut length between rails | 1,080 mm |
The vertical cut length is 1,200 − 60 − 60 = 1,080 mm. Eight pieces require 8,640 mm of material. Two full-width rails add 7,200 mm, producing a net requirement of 15,840 mm, or 15.84 linear metres.
However, total length alone does not establish the order quantity.
If the chosen stock length is 2,440 mm, four strips can each provide two 1,080 mm verticals, allowing for the actual saw kerf. Each 3,600 mm rail also needs a joint or a longer stock option.
One feasible jointed-rail schedule uses eight stock strips: four for the verticals and two for each rail. Total purchased length is 19.52 metres. The 3.68-metre difference represents offcuts and cutting losses, not a universal waste percentage.
Joint positions require approval, particularly with visible grain or decorative finishes. An alternative stock length or revised layout may reduce joints and waste. Backing sheets, trims, adhesives, and spare pieces remain separate order items.
Mark batten positions with removable tape before ordering. View the wall from the entrance and normal seating positions.
Compare narrow and wide openings without treating any single spacing range as a rule. The right rhythm depends on wall proportions, profile width, furniture, and the desired emphasis.
Mark every position from a single reference line rather than repeatedly stepping off a rounded gap. Repeated rounding can accumulate into a noticeable error at the final bay.
Dry-fit the two end battens and check several intermediate positions before fixing permanently. Resolve uneven corners through an agreed installation detail, not improvised gap changes across the wall.
Doors and windows do not simply disappear from the wall width. Decide whether the pattern continues visually across an opening or restarts on each side.
For repeated hotel rooms, prepare room-type drawings and confirm actual site dimensions before bulk production. A shared design does not guarantee identical walls.
Binmao Decor describes its range as customisable quick-install interior wall panels, including UV-finished boards and composite wall panels. Available constructions include MDF, wood veneers, PVC/WPC, PU, and acoustic-backed options.

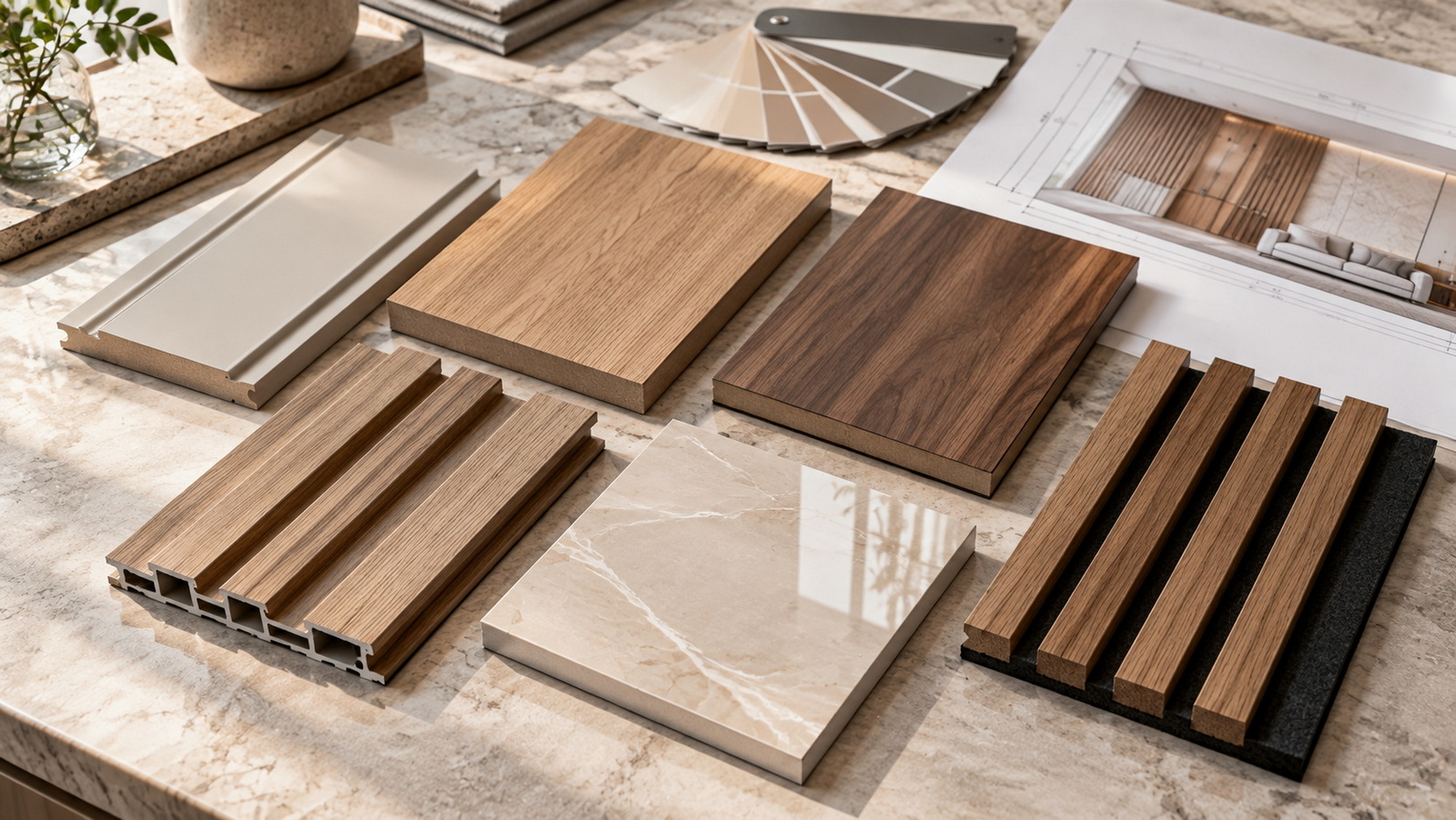

The specification should identify the complete construction, not just the decorative surface.
| Material or construction | Design application to assess | Information to request |
|---|---|---|
| MDF, including E1/E0-labelled options | Painted decorative walls | Emission test method, moisture suitability, edge preparation |
| Oak or walnut veneer | Natural-grain feature walls | Substrate, veneer matching, finish care |
| PVC/WPC composite | Areas needing moisture-focused detailing | Water-exposure limits, joint details, fire report |
| PU decorative profiles | Dimensional decorative features | Fixing method, coating compatibility, fire report |
| UV-finished boards | Smooth decorative surfaces | Core specification, finish sample, cleaning guidance |
| Acoustic-backed construction | Projects targeting sound absorption | Test result for the proposed complete assembly |
UV describes a finishing process; it does not independently identify the core or prove waterproof performance. Likewise, a material category alone does not establish its suitability for every location.
Binmao Decor's supplied product brief describes selected systems as 100% waterproof, mould-resistant, and flame-retardant. Confirm these claims against the exact product, exposure conditions, and supporting reports before specifying them.
Waterproof faces do not establish the performance of cut edges, joints, penetrations, adhesives, or the wall behind them. Do not treat ordinary decorative MDF as a substitute for a specified wet-area system.
Moisture control also remains essential. The U.S. Environmental Protection Agency advises drying water-damaged materials within 24–48 hours and addressing the source of moisture. No decorative finish removes that responsibility.
Flame-retardant is not synonymous with fireproof, and reaction-to-fire performance is different from the fire resistance of a wall assembly.
For projects in England, check the applicable Approved Document B guidance and project requirements with the responsible designer. Request the classification and supporting documentation relevant to the proposed lining, rather than accepting an unqualified marketing label.
Decorative battens alone do not establish soundproofing performance. For acoustic-backed products, ask whether the evidence concerns sound absorption or sound insulation and whether the tested construction matches the proposed installation.
E1/E0 labels should also be accompanied by their test standard and report. For regulated composite wood products supplied to the United States, applicable TSCA Title VI certification and labelling requirements must be checked separately.
Binmao Decor reports 14 years of manufacturing experience and offers custom widths, depths, finishes, installation technical support, and product test reports.
Turn those capabilities into a clear enquiry by supplying:
1. Dimensioned elevations and photographs of each wall type.
2. Batten count, clear gap, rail arrangement, and finished height.
3. Preferred core, finish, profile depth, and edge treatment.
4. Room use, cleaning conditions, and expected moisture exposure.
5. Destination market and required fire, emission, or acoustic documentation.
6. Quantities by room type and an approved cutting or panelisation plan.
Request a physical sample and review the proposed joint details before approving production. For commercial interiors, compare the whole installed specification rather than the panel price alone.
Send Binmao Decor your wall dimensions, destination market, and preferred finish to request a project-specific layout review, material recommendation, relevant test documentation, and quotation.
For full battens at both ends, subtract the combined batten widths from the wall width, then divide by the number of battens minus one. Different edge arrangements require different formulas.
Yes, in the full-edge formula used here. State this explicitly when sharing drawings or comparing calculator results.
There is no universal best spacing. Compare layouts using your actual wall dimensions and confirm the preferred arrangement with a full-scale tape mock-up.
Prepare a cutting schedule first. Stock lengths, saw kerf, joints, finish matching, and damage allowances determine the purchase quantity more reliably than a fixed percentage alone.
Only specify a construction suitable for the intended exposure. Confirm the substrate, edges, joints, penetrations, adhesive, and installation instructions; decorative appearance alone does not establish wet-area suitability.
According to the supplied company brief, Binmao Decor offers customised dimensions, finishes, material constructions, and installation technical support. Confirm the precise scope and documentation for your selected product before ordering.
