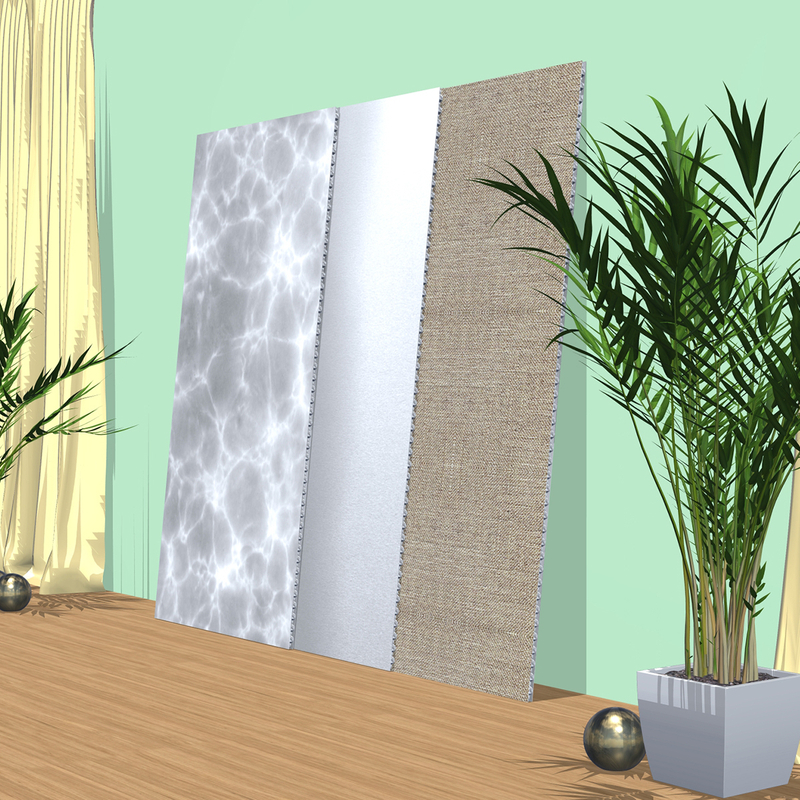

Aluminum Honeycomb Wall Panels

Aluminum honeycomb panel—also known as an aluminum honeycomb composite panel—is a type of metal composite panel formed through a lamination process in which two thin aluminum face sheets are firmly bonded to both sides of an aluminum honeycomb core.

Material:
Aluminum honeycomb panel is a composite material primarily composed of two layers of high-density aluminum sheets and an intermediate aluminum honeycomb core, bonded together through a process involving high temperature and high pressure.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Aluminum Honeycomb Wall Panels Aluminum Honeycomb Cladding Panels Honeycomb Aluminum Wall Panel System Lightweight Aluminum Wall Panels Fireproof Honeycomb Panels Soundproof Aluminum Honeycomb Panels Exterior Aluminum Honeycomb Panels Interior Decorative Wall Panels Aluminum Architectural Honeycomb Panel Solutions
Product Description

Advantages

  • Ultra-lightweight, Reduced Structural Load: At equivalent thicknesses, the weight is significantly lower than that of materials such as natural stone, solid aluminum panels, or glass.

  • High Strength and Structural Stability: The honeycomb core structure draws upon the mechanical principles of natural honeycombs, offering exceptional compressive and flexural strength; the surface resists deformation, demonstrating outstanding resistance to wind pressure and seismic forces.

  • Superior Flatness: Maintains excellent surface flatness even when applied over large areas, without developing a wavy or rippled appearance.

  • High Fire Rating: Composed entirely of aluminum, it is a non-combustible material with a fire rating ranging from A2 to A1.

  • Moisture and Corrosion Resistance: Highly resistant to corrosion; the enclosed honeycomb core prevents water absorption. The surface features a highly weather-resistant fluorocarbon or powder coating, ensuring a service life of over 20 years in outdoor environments.

  • Sound and Thermal Insulation: The hollow honeycomb core creates an air interlayer, providing effective sound insulation and thermal insulation properties.

  • Eco-friendly and Recyclable: Free from formaldehyde and harmful volatile organic compounds (VOCs); at the end of its service life, it is 100% recyclable and reusable.

  • Diverse Surface Finishes: A wide range of coating options is available, including fluorocarbon, polyester, powder coating, stone-effect, and wood-grain finishes. Furthermore, the panels can undergo advanced processing techniques such as perforation, carving, and edge folding.

Application

Aluminum Honeycomb Wall Panels (1)
Aluminum Honeycomb Wall Panels (2)
Aluminum Honeycomb Wall Panels (3)


Hot Tags: Aluminum Honeycomb Wall Panels, Aluminum Honeycomb Cladding Panels, Honeycomb Aluminum Wall Panel System, Lightweight Aluminum Wall Panels, Fireproof Honeycomb Panels, Soundproof Aluminum Honeycomb Panels, Exterior Aluminum Honeycomb Panels, Interior Decorative Wall Panels Aluminum, Architectural Honeycomb Panel Solutions, China, custom, wholesale, manufacturing company, manufacturers, factory, suppliers, Pricelist, quotation

Product Parameter

Physical Properties

  • Density: 2.5 – 3.0 kg/m² (based on 15mm thickness), lightweight, only 1/5 – 1/10 the weight of solid aluminum sheets;

  • Bending strength: ≥ 100 MPa (slightly varies depending on the structure), high bending stiffness, low deformation;

  • Impact strength: ≥ 15 kJ/m², not easily dented, safe and reliable;

  • Water absorption: 0 water absorption, moisture-proof and mildew-proof, suitable for humid environments;

  • Formaldehyde emission: 0 formaldehyde, green and environmentally friendly, suitable for interior decoration;

  • Weather resistance: -40℃ ~ +80℃, good high and low temperature stability;

  • Shear strength: ≥ 20 MPa (honeycomb core), honeycomb core material provides good structural stability;

  • Surface hardness: ≥ 2H (coated surface), scratch-resistant and wear-resistant, suitable for public spaces;

  • Fire rating: A2 (non-combustible), meets the highest national building fire protection requirements;

  • Sound insulation performance: Sound insulation ≥ 25 dB (depending on thickness/structure), suitable for environments with noise control requirements;

  • Insulation performance: lower thermal conductivity than solid aluminum, energy-saving and heat-insulating, aiding in temperature regulation.


Specification Color Length Width
7mm 4×4 Honeycomb Core Optional Standard size 2.44 (m) Other sizes can be customized 1220
9mm 4×4 Honeycomb Core Optional Standard size 2.44 (m) Other sizes can be customized 1220
9mm 4×4 Honeycomb Core Optional Standard size 2.8/3/3.2 (m) Other sizes can be customized 1220
9mm All-Aluminum 4×4 Honeycomb Core Optional Standard size 2.8/3/3.2 (m) Other sizes can be customized 1220
9mm Aluminum-Steel Plate 4×4 Honeycomb Core Optional Standard size 2.4/2.8 (m) Other sizes can be customized 1220
9mm Aluminum-Steel Plate 4×4 Honeycomb Core Optional Standard size 2.4/2.8 (m) Other sizes can be customized 1220
Single-Sided SPC Aluminum Honeycomb Panel Optional Standard size 2.8 (m) Other sizes can be customized 1220
Double-Sided SPC Aluminum Honeycomb Panel Optional Standard size 2.8 (m) Other sizes can be customized 1220
